OHAUS D71P25QR1 Defender 7000 Square Scale, 50lb x 0.005lb

Ohaus Defender 7000 Square Scale, 50lb x 0.005lb, D71P25QR1, 80501478

Click Here to Enlarge

Ask a Question

Quote Request

live chat service provider

Ohaus Defender 7000 Square Scale, 50lb x 0.005lb, D71P25QR1, 80501478

Authorized Distributor

Add Your Review

Brand	Ohaus Corporation
Product Code	OHS-80501478
Availability	Contact us for availability
Condition	Brand New

MSRP : ~~$0.00~~

$0.00

*This product has been discontinued and replaced with part number 30461631. Please email us for pricing

Product Description

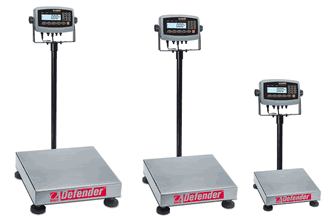

Ohaus Defender 7000 Square Scale, 50lb x 0.005lb, D71P25QR1.

The OHAUS DefenderTM 7000 Series is a feature-rich line of bench scales, combining an ABS plastic T71P indicator with painted steel bases and columns. Ideal for shipping and receiving, production, packaging and general commercial and industrial weighing applications, the Defender 7000 offers a multifunctional indicator with multiple weighing units, alpha-numeric keypad and software modes to meet the requirements of industrial and lab applications. With rugged construction, comprehensive yet intuitive software and multiple connectivity options, the Defender 7000 can meet the needs of demanding industrial operations.

Standard Features Include:

Painted steel base with ABS indicator
10,000-12,500d default resolution
1:5,000 certified resolution
Quick display of results using large dual line LCD with high-contrast white backlight
Temporary display of 10x readability in weighing mode using quick key press
Easy to operate with positive feedback 5-function key and alpha-numeric membrane keypad
Weighs in one or more units: kg, g, lb, oz, lb:oz
Multiple weighing modes including Counting, Percent Weighing, Dynamic/Animal Weighing, Checkweighing, Display Hold, and Accumulation
255 item Library data storage function
Internal power supply with universal line cord or 6 “C” batteries (80 hour battery life) – optional NiMH internal rechargeable power pack available
Includes RS232 interface with GMP/GLP data output including date and time, and external analog base input for dual-base counting
Base and indicator connected using quick connect plug
Options include DC relay control kit, AC relay control kit, RS485/422 and 2nd RS232 interfaces, Alibi memory module

NOTE:We are an authorized distributor of Ohaus Corporation. We carry the entire product line of Ohaus Scales and Balances for different industries such Laboratory & Scientific Research, Retail industry, Medical Field, Jewelry and Pharmaceutical. We are located in Long Island New York. If you can not find any Ohaus products or replacement parts and accessories on our website, please contact us for pricing and availability. Our phone numbers are toll free 1-888-822 3336 or 631-803 2694. You can also send us an email to info@getmedonline.com or simply click on the "Ask Question" button on every product detail page. We will reply your inquiries as quickly as possible...

Features

ABS plastic indicator with square painted steel base
Advanced parts counting, dynamic animal weighing, percent weighing, display hold for large containers, checkweighing, accumulation, GMP/GLP with time/date, expanded 10x readability mode, GMP/GLP with time/date and 255 library records
lb, oz, lb:oz, g, kg, user-defined custom unit
Full alphanumeric keypad, dual-line backlit LCD display and checkweighing LEDs
Includes second scale analog input for dual base operation
Pressed square steel welded base design for rugged durability with painted column

Specifications

Specifications

Model

D71P10QR1

D71P25QR1

D71P50QL2

D71P100QL2

D71P250QX2

Capacity (max) x

Default Readability (d)

25lb x 0.002lb

400oz x 0.05oz

25lb : 0.05oz

10kg x 0.001kg

10000g x 1g

50lb x 0.005lb

800oz x 0.1oz

50lb x 0.1oz

25kg x 0.002kg

25000g x 2g

100lb x 0.01lb

1600oz x 0.2oz

100lb : 0.2oz

50kg x 0.005kg

50000g x 5g

250lb x 0.02lb

4000oz x 0.5oz

250lb : 0.5oz

100kg x 0.01kg

100000g x 10g

500lb x 0.05lb

8000oz x 1oz

500lb : 1oz

250kg x 0.02kg

250000g x 20g

Maximum Displayed Resolution

1:12500

1:10000

1:12500

Capacity x Certified/Approved Readability

25 lb x 0.005 lb10 kg x 0.002 kg

50 lb x 0.01 lb25 kg x 0.005 kg

100 lb x 0.02 lb50 kg x 0.01 kg

250 lb x 0.05 lb100 kg x 0.02 kg

500 lb x 0.10 lb250 kg x 0.05 kg

Maximum Certified Resolution

1:5,000

Indicator Model

T71P

Column

13.8 in / 350 mm painted steel

26.8 in / 680 mm painted steel

Construction

ABS plastic indicator, stainless steel removable weighing platform, painted steel column and base construction, aluminum loadcell

Safe Overload Capacity

150% of maximum capacity

Protection

Dry use for scale, IP67 for loadcell

Weighing Units

lb, oz, lb:oz, kg, g, custom unit

Modes/Features

Static Weighing (single or dual range), Dynamic Weighing, Counting, Checkweighing, Percent Weighing, Display Hold, Accumulation, Library

Display

6-digit, 7-segment LCD, 25mm/1 inch high primary digits, dual line, with high-contrast white LED backlight

Keypad

Positive feedback membrane keys, 5 function keys and alpha-numeric keypad

Stabilization Time

Within 2 seconds

Auto-zero Tracking

Off, 0.5, 1 or 3 d

Zeroing Range

2% or 100% of capacity

Calibration

Span: 1kg or 1lb to 100% of capacity / Linearity: 3 or 5 point

Power

100-240 VAC / 50-60Hz internal universal power supply, 6 ‘C’ cell batteries (not supplied) with 80 hour life

Interface

RS232 and external input

Operating Temperature Range

14°F to 104°F / -10°C to 40°C

Shipping Dimensions (L x W x H)

19.3 x 16.1 x 17.3 in

490 x 410 x 440 mm

31.2 x 23.6 x 9.5 in

810 x 600 x 240 mm

39.4 x 29.9 x 9.8 in

1000 x 760 x 250 mm

Scale Dimensions

(W x H1 x H2 x D1 x D2)

12 x 3.7 x 23.2 x 12 x 16.7 in

305 x 95 x 590 x 305 x 425 mm

18 x 4.5 x 37 x 18 x 22.7 in

457 x 115 x 940 x 457 x 577 mm

24 x 5.4 x 37 x 24 x 28.7 in

610 x 137 x 940 x 610 x 730 mm

Net Weight

32.4 lb / 14.7 kg

66.6 lb / 30.2 kg

83.8 lb / 38.0 kg

Shipping Weight

37.7 lb / 17.1 kg

71.4 lb / 32.4 kg

97.9 lb / 44.4 kg

Warranty / Return Policy

Manufacturer's Warranty
