IKA Tube Mill Control, 5,000 - 25,000rpm Variable Speed, 40ml Capacity, 4180001


live chat service provider
IKA Tube Mill Control, 5,000 - 25,000rpm Variable Speed, 40ml Capacity, 4180001
BrandIKA Works
Product CodeIKA-4180001
Select Model
AvailabilityUsually ships in 5-7 business days
ConditionBrand New

MSRP : $4,560.02
$4,071.45
You Save 11%
Qty:

Product Description

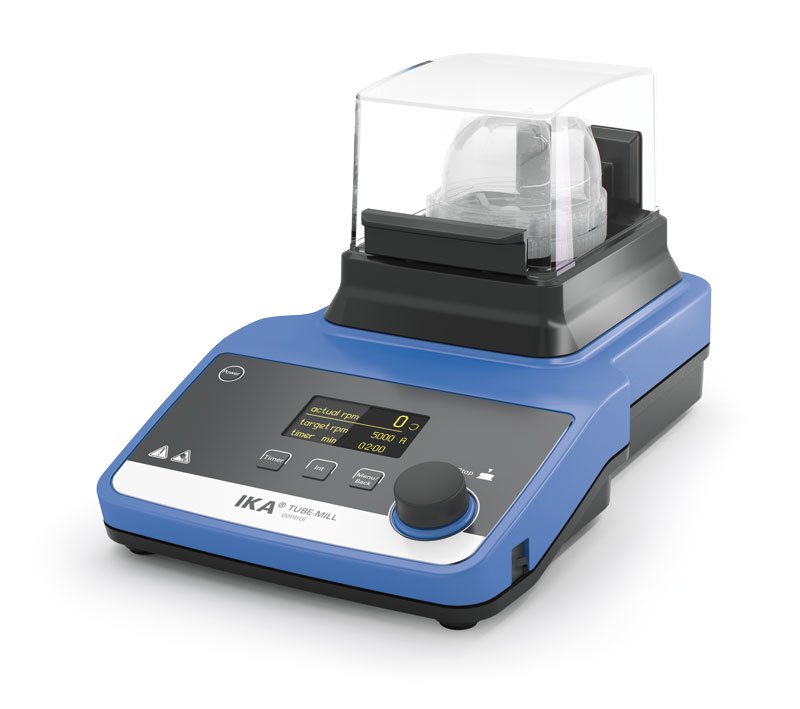

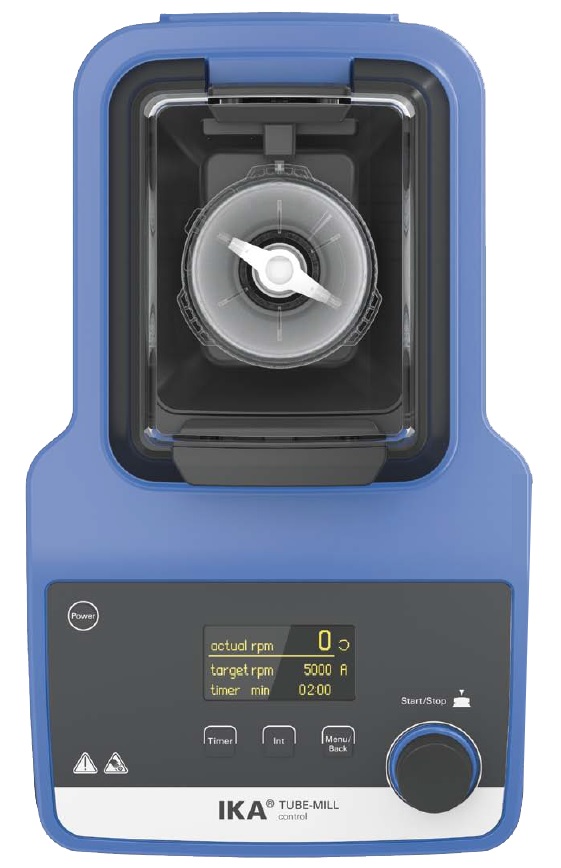

IKA Tube Mill Control, 5,000 - 25,000rpm Variable Speed, 40ml Capacity, 4180001


The world’s first patented Tube Mill control is a batch mill with disposable grinding chamber. Eliminates possibility of cross-contamination and the effort of cleaning. The grinding chamber and cover are made of a transparent material so grinding tests can be observed at any time. The mill can be used for hard (Mohs hardness up to 5), dry and brittle materials. It is especially suitable for grinding seeds, such as corn and wheat. During development of the mill, particular emphasis was placed on security. The mill will only start when the hood is closed. When the grinding chamber is not inserted properly or not closed properly, the drive unit will display an error message and the drive will not start. During operation, the grinding chamber cannot be opened. The drive and the grinding chambers are secured with a labyrinth seal. No dust can escape from the chamber or penetrate the drive.

NOTE:We are an authorized distributor of IKA Laboratory Equipment, parts and accessories. We carry the entire line of IKA magnetic stirrers, overhead stirrers, vortex mixers, homogenizers, rotary evaporators, lab reactors, parts and accessories. We are located in Long Island New York. If you can not find any IKA products, parts or accessories on our website, please contact us for pricing and availability. Our phone numbers are toll free 1-888-822 3336 or 631-803 2694. You can also send us an email to info@getmedonline.com or simply click on the "Ask Question" button on every product detail page. We will reply your inquiries as quickly as possible...

Features

  • Clearly arranged, multilingual OLED-display
  • Timer, adjustable from 5 s to 3 min
  • USB interface for control and documentation of all the parameters
  • Interval operation available
  • Infinitely variable speed from 5000 to 25000 rpm
  • Various operating modes
  • Adjustable safety speed
  • Adjustable safety time
  • Programmable and storable test conditions
  • Error Code Display
  • Reproducible test results
  • Easy operation with touch keypad
  • Dust proof sealed housing
  • Quiet operation

Specifications

Process type batch
Operating principle cutting/impact
Motor rating input 100 W
Motor rating output 80 W
Speed range 5000 - 25000 rpm
Speed deviation 500 ±rpm
Circumferential speed max. 65 m/s
Usable volume max. 40 ml
Feed hardness max. 5 Mohs
Feed grain size max. 10 mm
Material beater/cutter stainless steel 1.4034
Power-on time ON 3 min
Milling chamber, can be cooled with water no
Mill feed can be cooled in milling chamber with dry ice yes
Mill feed can be cooled in milling chamber with liquid nitrogen no
Dimensions (W x H x D) 180 x 170 x 300 mm
Weight 2.7 kg
Permissible ambient temperature 5 - 40 °C
Permissible relative humidity 80 %
Protection class according to DIN EN 60529 IP 30
RS 232 interface no
USB interface yes
Analog output no
Voltage 220 - 240 / 100 - 120 V
Frequency 50/60 Hz
Power input 100 W

Packaging Content

  • IKA® Tube Mill control
  • Two MT 40 milling tubes
  • Coupling extractor
  • Mains cable
  • USB cable
  • Operating instructions
  • A warranty card
