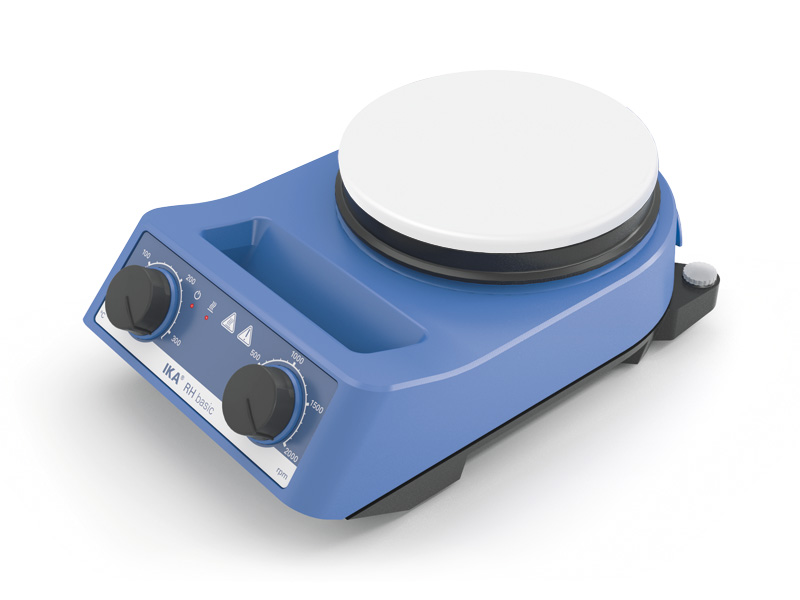

IKA RH Basic Magnetic Ceramic Hotplate Magnetic Stirrer, 5029701


live chat service provider
IKA RH Basic Magnetic Ceramic Hotplate Magnetic Stirrer, 5029701
BrandIKA Works
Product CodeIKA-5029701
Select Model
AvailabilityUsually ships in 3-7 Business Days
ConditionBrand New

MSRP : $644.55
$575.49
You Save 11%
Qty:

Product Description

IKA RH Basic Magnetic Ceramic Hotplate Magnetic Stirrer, 5029701

Newly designed, economic magnetic stirrer with heating. Bushing according to DIN 12878 for connecting an electronic contact thermometer, such as the ETS-D5. Highly accurate temperature control is possible with sensor placed directly in the medium. High heat output of 600 watts and white ceramic heating plate ensures rapid heating. Adjustable safety temperature from 50 to 360 °C.

    Features;
    • Soft-start of the stirring motor
    • Includes M 10 thread for a support rod
    • Strong magnetic field and wide speed range for volumes up to 15 liters

Data Sheet Manual RH Basic & Digital Flyer IKA Product Catalogue


NOTE:We are an authorized distributor of IKA Laboratory Equipment, parts and accessories. We carry the entire line of IKA magnetic stirrers, overhead stirrers, vortex mixers, homogenizers, rotary evaporators, lab reactors, parts and accessories. We are located in Long Island New York. If you can not find any IKA products, parts or accessories on our website, please contact us for pricing and availability. Our phone numbers are toll free 1-888-822 3336 or 631-803 2694. You can also send us an email to info@getmedonline.com or simply click on the "Ask Question" button on every product detail page. We will reply your inquiries as quickly as possible...

Features

  • Soft-start of the stirring motor
  • Includes M 10 thread for a support rod
  • Strong magnetic field and wide speed range for volumes up to 15 liters

Specifications

Number of stirring positions 1
Stirring quantity max. (H2O) 15 l
Motor rating input 20 W
Motor rating output 2 W
Speed display scale
Speed range 100 - 2000 rpm
Stirring bar length max. 80 mm
Heat output 600 W
Heating rate (1 l H2O in H15) 6 K/min
Heating temperature range 50 - 320 °C
Heat control scale
Heat control accuracy 20 ±K
Speed control scale
Adjustable safety circuit min. 100 °C
Adjustable safety circuit max. 360 °C
Connection for ext. temperature sensor DIN 12 878
Control accuracy with sensor 1 ±K
Temperature measurement resolution 20 K
Set-up plate material technical enamel
Set-up plate dimensions Ø 135 mm
Weighing function no
Viscosity trend measurement no
Intermittent mode no
Break detection stirring bar no
Timer no
Dimensions (W x H x D) 160 x 100 x 250 mm
Weight 2.8 kg
Permissible ambient temperature 5 - 40 °C
Permissible relative humidity 80 %
Protection class according to DIN EN 60529 IP 21
RS 232 interface no
USB interface no
Analog output no
Voltage 230 / 115 / 100 V
Frequency 50/60 Hz
Power input 620 W

Packaging Content

  • Package Includes;
  • Magnetic stirrer with heating RH basic or RH digital
  • Mains cable
  • Operating Instructions
  • Screwdriver
  • H 102.1 Protection handle
  • H102 protective cover (RH basic) OR H103 protective cover (RH digital)
  • Stirring bar 20, 30 and 40 mm
