IKA HB Digital Heating Bath, 4 Liter, Max Temp. 180°C, 20016395


live chat service provider
IKA HB Digital Heating Bath, 4 Liter, Max Temp. 180°C, 20016395
BrandIKA Works
Product CodeIKA-20016395
AvailabilityUsually ships in 3-4 business days
ConditionBrand New

MSRP : $1,923.99
$1,717.85
You Save 11%
Qty:

Product Description

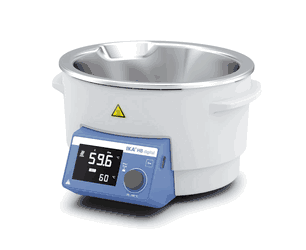

IKA HB Digital Heating Bath, 4 Liter, Max Temp. 180°C, 20016395


IKA HB Digital Heating Bath, 4 Liter, Max Temp. 180°C, 20016395. Compact and ergonomic heating safety bath for all heating media applications. It has a maximum temp. of 180°C. LCD Digital control panel, computer connectivity via USB interface.

NOTE:We are an authorized distributor of IKA Laboratory Equipment, parts and accessories. We carry the entire line of IKA magnetic stirrers, overhead stirrers, vortex mixers, homogenizers, rotary evaporators, lab reactors, parts and accessories. We are located in Long Island New York. If you can not find any IKA products, parts or accessories on our website, please contact us for pricing and availability. Our phone numbers are toll free 1-888-822 3336 or 631-803 2694. You can also send us an email to info@getmedonline.com or simply click on the "Ask Question" button on every product detail page. We will reply your inquiries as quickly as possible...

Features

  • 4 l bath volume
  • Max. media temperature: 180 °C
  • Ergonomic handles
  • Key button to lock heating bath temperature
  • Clear, black-and-white display
  • Safety operating modes A, B, C
  • Permanent set-point/ actual temperature display
  • USB interface

Specifications

Heat output 1350 W
Heating temperature range room temp. - 180 °C
Heat control LCD
Set temperature resolution 1 ±K
Controller oscillation (3 l water / 90 °C) 1 ±K
Absolute deviation/mean (3l water / 90 °C) 2 ±K
Controller oscillation (3l Silicone oil / 50mPas / 150°C) 2 ±K
Absolute deviation/mean (3 l Silicone oil / 50mPas/ 150°C) 4 ±K
Filling volume max. 4 l
Filling point min. 60 mm
Material in contact with medium stainless steel 1.4404
Fixed safety circuit 190 °C
Adjustable safety circuit 50 - 190 °C
Class designation acc. DIN 12876 II
Outer diameter 257 mm
Inner diameter 225 mm
Outer height 190 mm
Inner height 130 mm
Dimensions (W x H x D) 330 x 190 x 325 mm
Weight 3.9 kg
Permissible ambient temperature 5 - 40 °C
Permissible relative humidity 80 %
Protection class according to DIN EN 60529 IP 21
USB interface yes
Voltage 200 - 240 / 100 - 120 V
Frequency 50/60 Hz
Power input 1350 W
Power input standby 3 W

Packaging Content

  • Heating bath IKA HB Digital
  • Power supply cable
  • USB cable
  • Operating instructions
  • Warranty card
