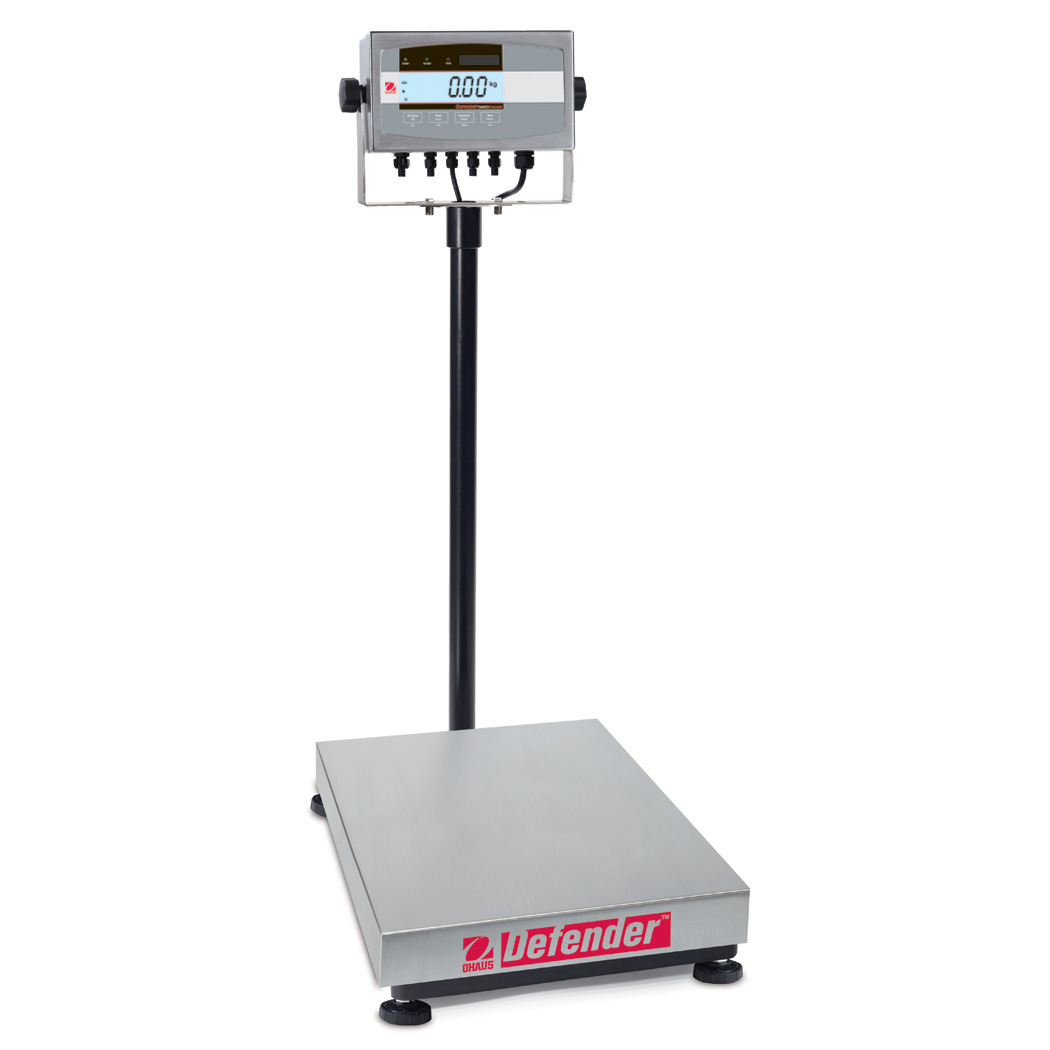

Ohaus Defender Extreme 5000X Rectangular Scale, 60lb x 0.01lb, D51XW30HR1, 80500908


live chat service provider
Ohaus Defender Extreme 5000X Rectangular Scale, 60lb x 0.01lb, D51XW30HR1, 80500908
BrandOhaus Corporation
Product CodeOHS-80500908
AvailabilityContact us for availability
ConditionBrand New

MSRP : $0.00
$0.00
*This product has been discontinued and replaced with part number 30461694. Please email us for pricing
Out of Stock

Product Description

Ohaus Defender Extreme 5000X Rectangular Scale, 60lb x 0.01lb, D51XW30HR1.

The OHAUS DefenderTM 5000 Series is a feature-rich line of bench scales, combining a stainless steel D51XW indicator with a rectangular, painted steel base and a painted steel column. Ideal for shipping and receiving, production, packaging and general commercial and industrial weighing applications, the Defender 5000 offers a multifunctional indicator with multiple weighing units and software modes to meet the requirements of industrial and lab applications. With rugged steel construction, comprehensive yet intuitive software and multiple connectivity options, the Defender 5000 can meet the needs of demanding industrial operations.

    Standard Features Include:
    • All steel construction with stainless steel indicator and painted steel column and base
    • 5,000-7,500d default resolution
    • NTEP Certified / Measurement Canada Approved resolution up to 1:3,000
    • Quick display of results using large LCD with high-contrast white backlight
    • Temporary display of 10x readability in weighing mode with quick key press
    • Easy to operate with 4-key membrane keypad with raised tactile keys
    • Weighs in one or more units: kg, g, lb, oz, lb:oz (decimal), metric tonnes and user-definable custom unit
    • Multiple weighing modes including Counting, Percent Weighing, Dynamic/Animal Weighing, Checkweighing, and Display Hold.
    • Internal universal switching power supply with hardwired line cord – optional NiMH internal rechargeable power pack available
    • Includes RS232 interface with GMP/GLP data output including date and time
    • Optional interfaces include DC relay control kit, AC relay control kit, 2nd RS232 and RS422/485



NOTE:We are an authorized distributor of Ohaus Corporation. We carry the entire product line of Ohaus Scales and Balances for different industries such Laboratory & Scientific Research, Retail industry, Medical Field, Jewelry and Pharmaceutical. We are located in Long Island New York. If you can not find any Ohaus products or replacement parts and accessories on our website, please contact us for pricing and availability. Our phone numbers are toll free 1-888-822 3336 or 631-803 2694. You can also send us an email to info@getmedonline.com or simply click on the "Ask Question" button on every product detail page. We will reply your inquiries as quickly as possible...

Features

  • Stainless steel indicator with rectangular painted steel base and painted column
  • Advanced parts counting, dynamic animal weighing, percent weighing, checkweighing, display hold for large containers and GMP/GLP with time/date
  • lb, oz, lb:oz, g, kg, user-defined custom unit with Expanded 10X Readability mode
  • Backlit LCD display with checkweighing LEDs
  • NTEP 3,000e Certified Resolution

Specifications

Display resolution 1:6000
Indicator included T51XW
Column Height (in/cm) 13.8 in / 350 mm painted steel
Housing Stainless steel indicator, removable weighing platform, painted steel column and base construction, aluminum loadcell
Safe overload capacity (as percent of the rated load) 150% of maximum capacity
Protection NEMA 4X/IP66 for indicator, IP67 for loadcell
Weighing units lb, oz, lb:oz, kg, g, custom unit
Weighing modes Static Weighing, Dynamic Weighing, Counting, Checkweighing, Percent Weighing, Display Hold
Display 1 in / 25 mm high 6-digit, 7-segment bright white backlit LCD
Keyboard 4-button membrane switch
Stabilization time (seconds) Within 2 seconds
Auto Zero Tracking Off, 0.5, 1 or 3 d
Zeroing range 2% or 100% of capacity
Calibration Span: 1 kg or 1 lb to 100% of capacity / 3-point linearity (0 - 50% - 100% fixed)
Powered By 100-240 VAC / 50-60Hz internal universal power supply
Interface RS232 and external input
Operating Temperature Range 14°F to 104°F
-10°C to 40°C
Shipping dimensions (WxDxH) (in/cm) 12 x 3.7 x 23.2 x 12 x 16.7 in
305 x 95 x 590 x 305 x 425 mm
Dimensions WxHxD (in/cm) 19.3 x 16.1 x 17.3 in
490 x 410 x 440 mm
Net Wt. (lb/kg) 28.4 lb / 12.9 kg
Shipping Wt. (lb/kg) 33.3 lb / 15.1 kg
